■ 炭素繊維強化プラスチック(CFRP、Carbon-Fiber-Reinforced Plastics)
■ 炭素繊維強化熱可塑性プラスチック(CFRTP、Carbon-Fiber-Reinforced Thermo Plastics)
熱可塑CFRP(CFRTP)技術~独自の炭素繊維開繊技術によるプリプレグ、及び成形品~
熱可塑CFRP(CFRTP) 炭素繊維開繊技術のご紹介
技術紹介

1.積水化学独自の炭素繊維開繊技術
利点
- 熱可塑樹脂の含浸を容易化 ⇒ 高粘度樹脂使用可能
- 未処理炭素繊維を用いたCFRTPと比較して強度大幅向上
- UDに加えて3K織物や12K織物も処理可能 ⇒ 厚肉プリプレグ実現
含浸状況の比較(CFRTP断面写真)
※ 条件 炭素繊維:3K織物、ポリプロピレン樹脂、温度200℃にて加圧なし、2分間加熱後の状況
樹脂含浸後物性(曲げ強度)
2.炭素繊維プリプレグ生産技術
・ 高粘度樹脂を用いた連続成形
・ 高生産性の実現
Skin-Ribシート CFRP補強材
Skin-Ribシート(CFRP補強シート)のご紹介
製品紹介

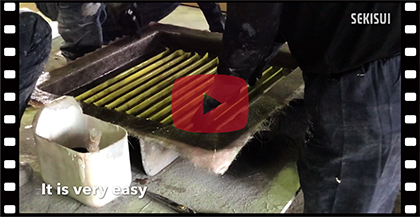

施工動画(ハッチカバー)

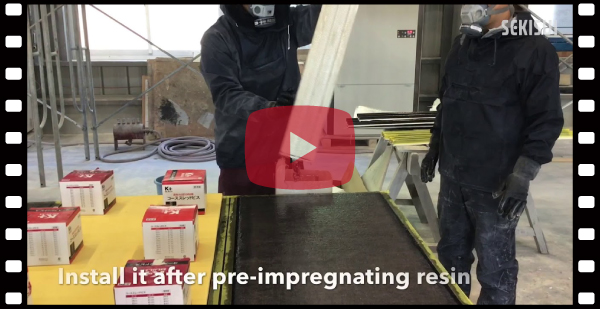

施工動画(パネル)

積水化学の熱可塑CFRP技術
CF開繊処理(独自技術)
繊維表面に球状の微粒子を配置し隙間確保
空隙に熱可塑樹脂含浸(スペーサ効果)
特長
- 熱可塑樹脂の含浸性向上 ⇒ 織物、厚肉CFに対応可
⇒ 積層レスで高剛性を発現
- CFと樹脂との密着力アップ ⇒ 強度向上
熱可塑樹脂 含浸技術
<含浸状況>
高粘度樹脂へ展開中
特長
- 高速含浸による兼価CFプリプレグの提供
- 幅広い樹脂対応(高粘度樹脂、難燃樹脂)
軽量補強材 Skin-Ribシート <床、壁補強用途>
<断面構成>
特長
- 軽量・高剛性(高耐荷重)
- 易施工性(ハンドレ、VaRTM成形対応)
- 長尺対応
- 制振性(個体振動抑制)
-
軽量・高剛性
GFサンドイッチパネルに対し大幅な重量低減が可能
<重量比較>
同一曲げ剛性を発現する部材重量
-
易施工性
Rib構造による積層レスで施工時間短縮(最大6割)
<ハンドレ成形>
<VaRTM成形>
-
長尺対応
L=5m級の長尺にも対応可能
(R=5000曲率対応可)
-
制振性
使用用途・要求スペックに応じて、
Rib形状、材料構成のカスタマイズが可能
Heavy gauge CFRTP prepreg~by SEKISUI original technology of carbon fiber spreading~
Carbon fiber spreading technology
Technologyies

2. CF prepreg production
・ Continuous process
・ Higher production rate
Advantages
- Continuous process with High Viscosity resins
- Cost reduced CTRTP prepreg
3. CFRTP continuous molding
Advantages
- Higher production rate
- Various cross section
Skin-Rib sheet CFRP reinforcement
SEKISUI Skin-Rib sheet ~Light weight & high Stiffness~
Products
Construction video(Hatch cover)

Construction Video (Panel)

Construction Comparison Video
Application
Customer Reviews ①
Customer Reviews ②
Our key technology of CFRTP (Under Development)
1. CF spreading treatment
Carbon particle injected to CF surface would form a gap and enable an easy impregnation of thermoplastic resins.
Features
- Adaptable to both CF roving and CF fabric (12K over)
- Enable higher stiffness by less layer stacking
2. Thermoplastic impregnation process to CF
Features
- Handling various types plastics (high viscosity resin, flame retardant material, etc.)
- Providing economical prepreg by fast impregnation
<Progress of impregnation>
PP,PC | PMMA | PVC |
◎ | ○ | Under develop-ing |
→Expanding to the higher viscosity resins
3. Continuous multi-layer molding
Features
- Light weight and high stiffness
- Forming arbitrary shape
Skin-Rib sheet E (Lightweight reinforcement material) <floor,wall reinforcement>
<Cross-section Composition>
Features
- Light weight and high stiffness
- Easy installation (Hand layup, Va-RTM)
- Long range reinforcement
- Vibration damping (Solid vibration)
-
Light weight and high stiffness
About 50% weight reduction Relative to Sandwich panel.
<Comparison of weight>
at same flexural stiffness
-
Easy installation
Handling period and resin consumed can be reduced.
<Hand layup process>
<Va-RTM process>
-
Long range reinforcement
Enable to provide 16ft long sheet
(can follow moderate curve)
-
Vibration damping
